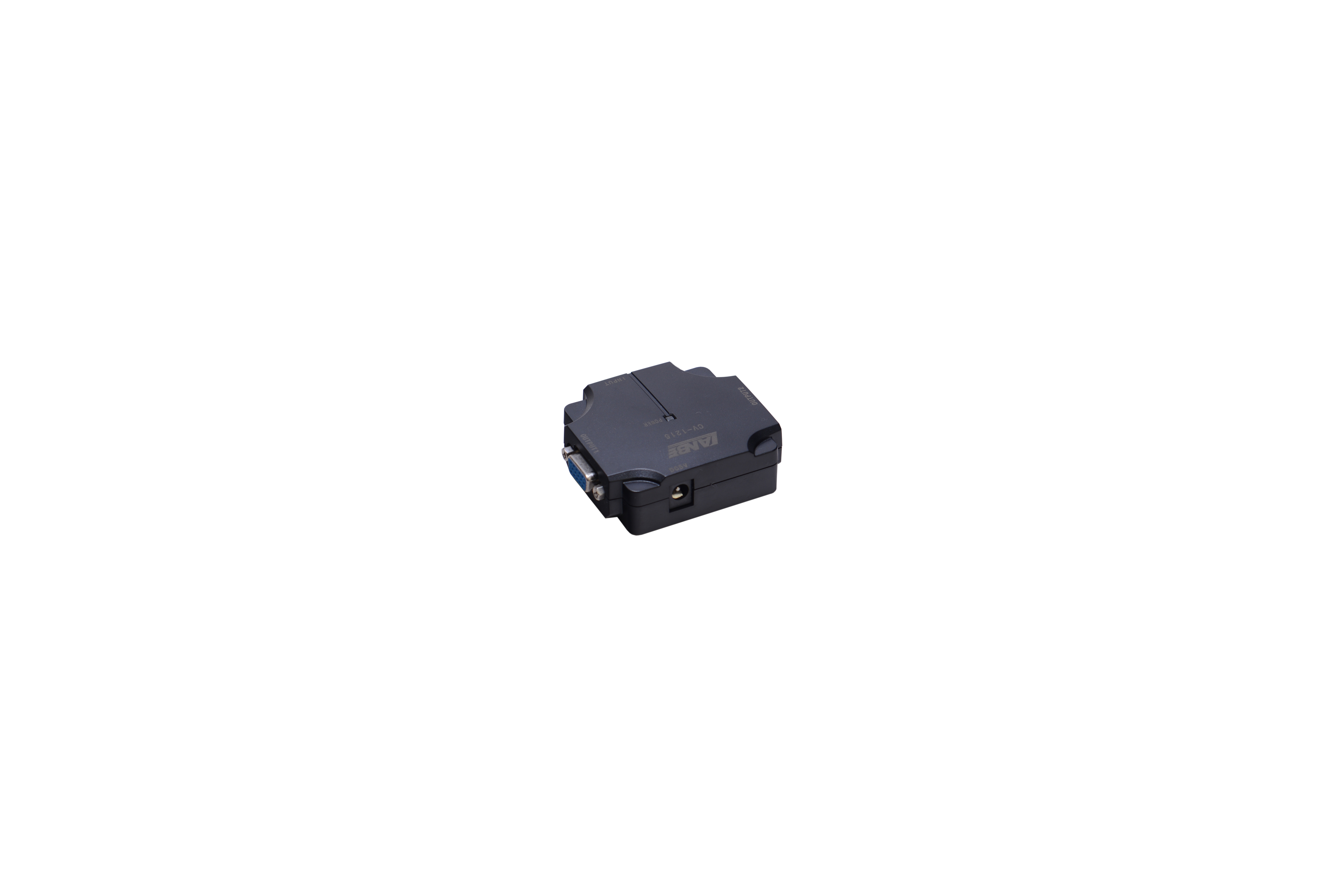

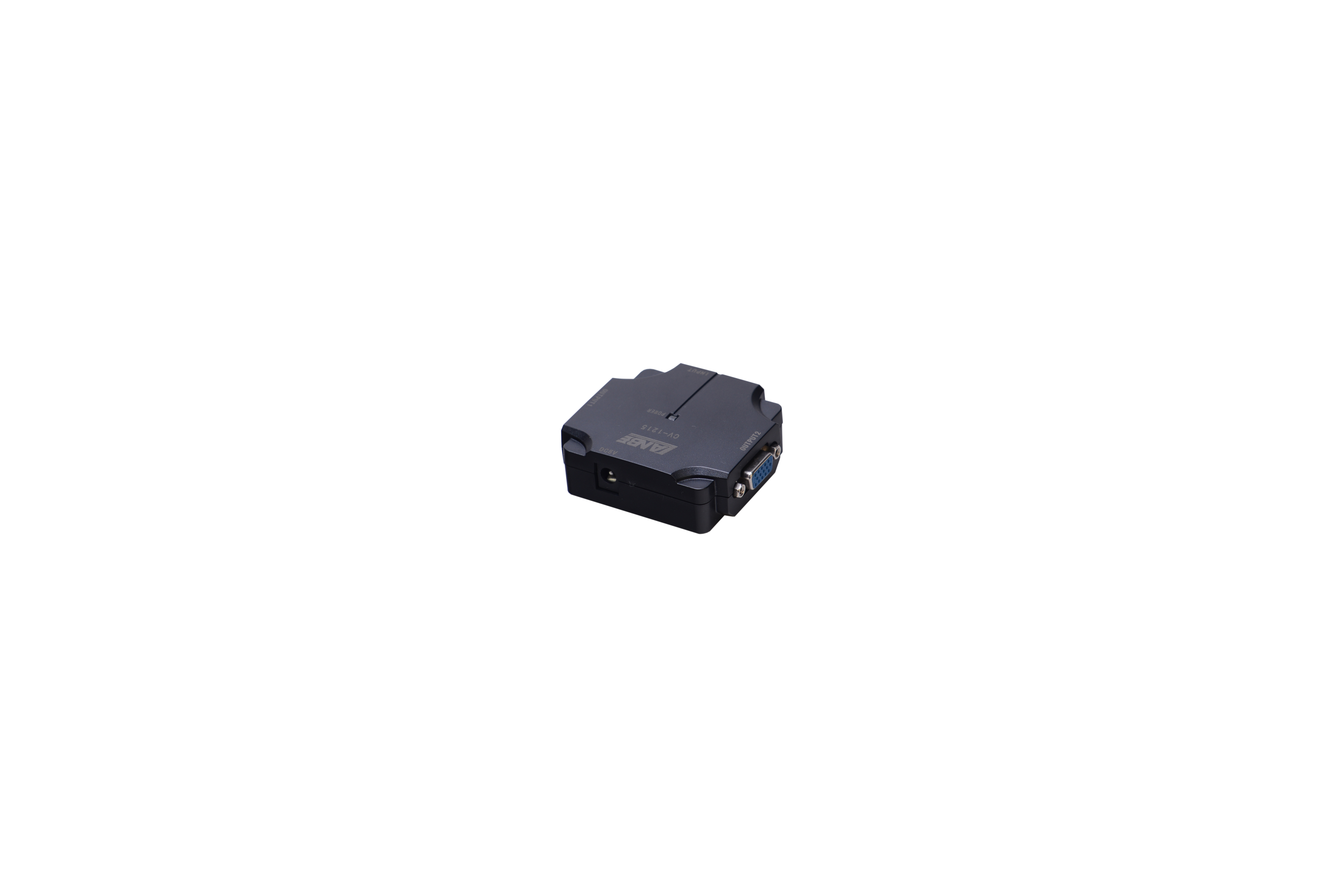

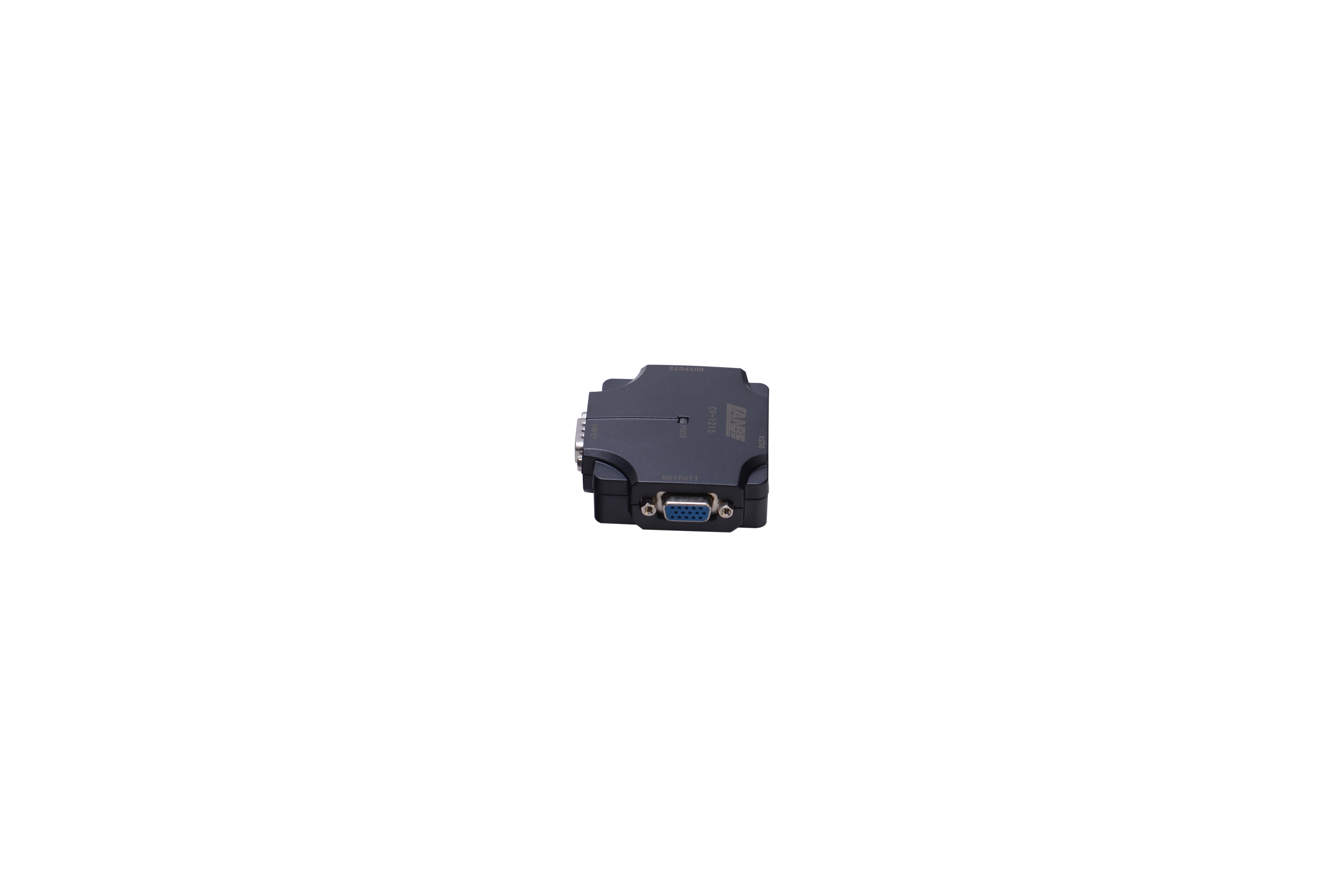

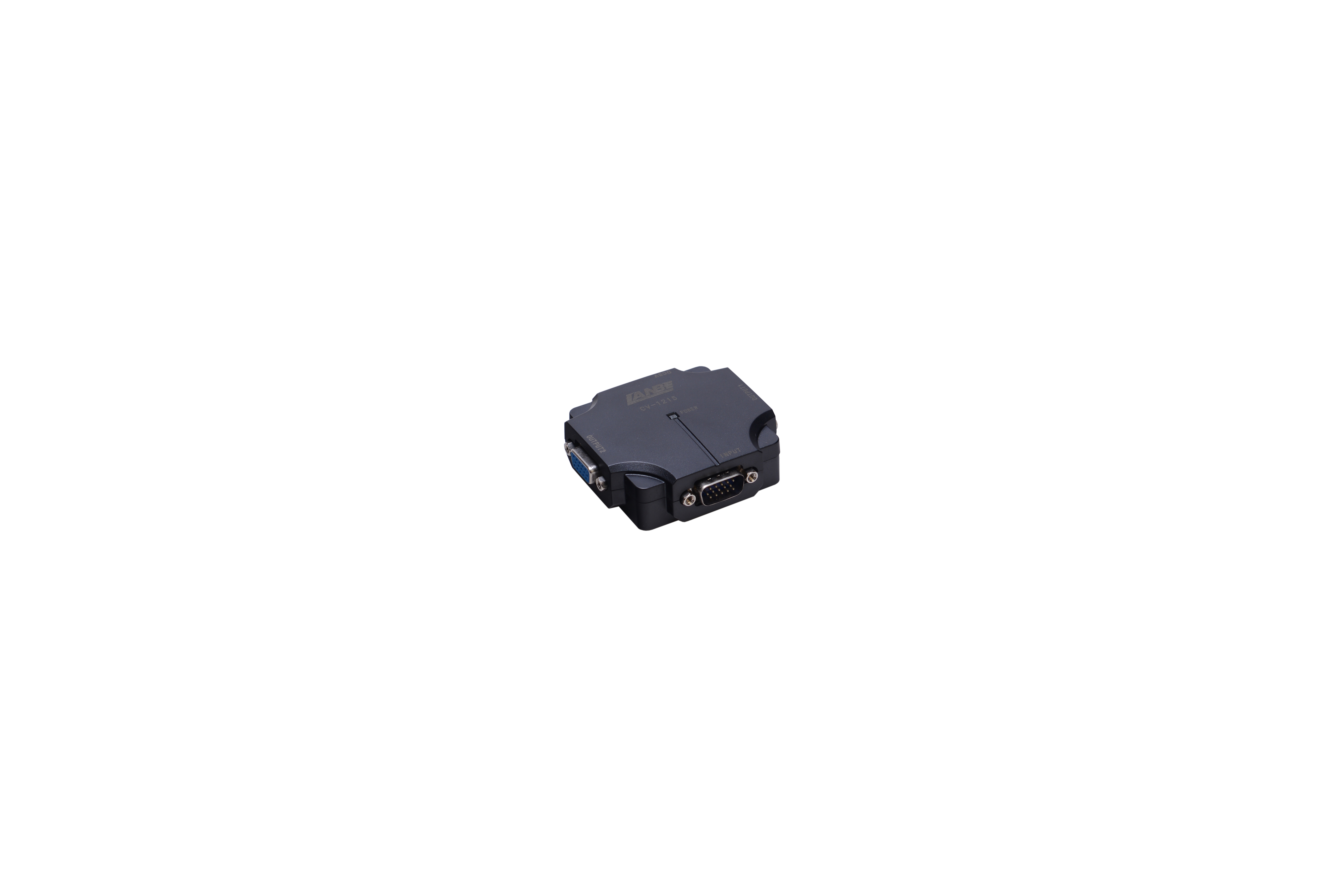

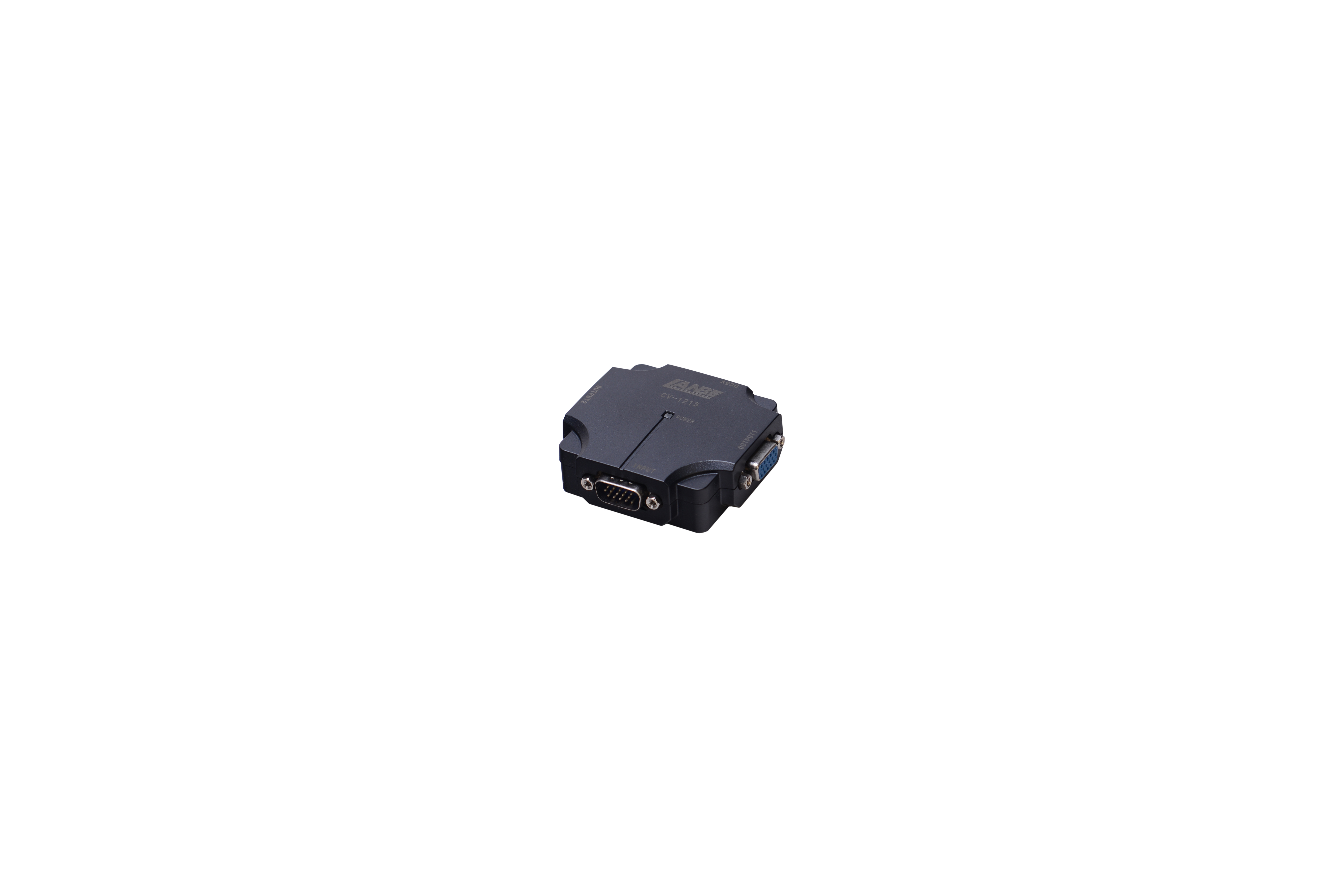

CV-1215（VGA Splitter, 2ports）


Plastic housing VGA splitter CV-1215 (video splitter) is the equipment to distribute one video signal to 2 VGA output equipment synchronous-y, to ensure different displays show the same image The equipment with additional power adapter, which can blow up and dispose the output signals, in order to ensure and improve the signal output plus. Advantages: high bandwidth, resolution and reliability, As well as the long-distance signal transmission, the max long-distance can reach 65 meters. it could be use din: securities business, computer exhibition hall, public broadcasting and education training center etc

Type

CV-1215

Bandwidth

150MHz

Signal

Product Type

1 into 2

Connector type

INPUT HD15M; OUTPUT HD15F

Min input voltage

0.5Vp-p

Max input voltage

1.0Vp-p

I/O impedance

75Ω

Max Resolution

1920*1080

Horizontal frequency

30-120KHz

Vertical frequency

40-120Hz

Pertinence

Dimension (mm)

66*62*24mm

Power

USB Power Supply  (5V 500mA)

House

Plastic
