PDU Centralized Management Platform X30A

PDU Centralized Management Platform X30A

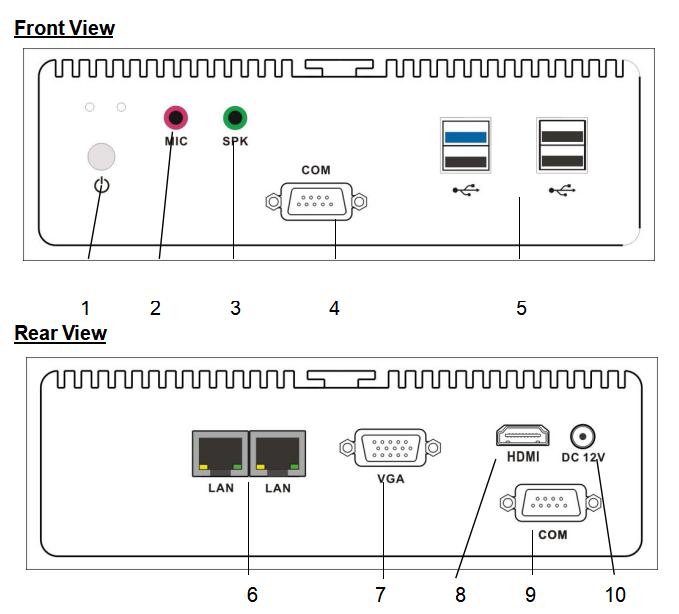

No.	Item	Description
1	The power switch	After the device is powered on as required, press the switch with your finger to start the device Long press this switch can also turn off the system power.
2	microphone	External microphone port
3	The speaker	Audio output interface, external active speaker
4/9	A serial port	A peripheral that can connect to a serial port.
5	The USB interface	Provides four USB peripheral ports, supporting USB2.0 and USB3.0
6	Gigabit Ethernet network port	It can connect to 1000M Ethernet network. Control and access PDUs and log in to clients.
7	VGA video outlet	Can be connected to a VGA display device
8	HDMI video port	HDMI-connected display devices
10	AC in connector	Insert the power cable to the AC power supply here. The power input socket is equipped with switch Settings. Switch on the power cable to enable the PDU to work.

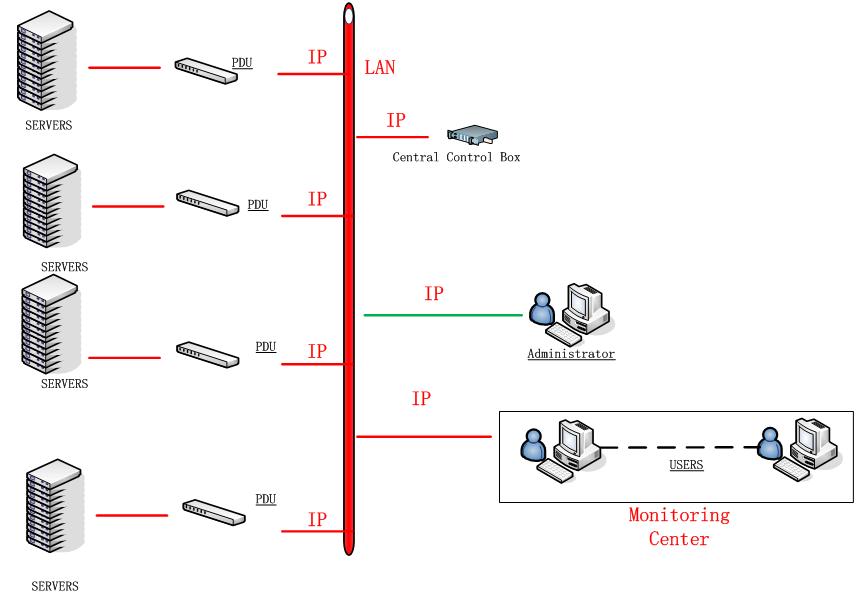

● Automatically search all the company's smart PDU devices in the same internal network
● remote real-time power measurement and monitoring
● PDU level current/voltage/power/power consumption
● socket on/off/loop state
● circuit breaker condition monitoring
● remote real-time power outlet management
● one by one for each outlet switch on/off/cycle
● user-defined open order delay time of each outlet
● current/voltage/power/power consumption threshold setting
● flexible definition PDU equipment group Settings
● Supports batch configuration operations to improve setup efficiency
● for each socket custom name
● remote real-time environment + humidity sensor to monitor the temperature
● Remotely gets the connection status of the PDU in real time
● temperature and humidity threshold setting
● graphics display equipment power consumption of different unit of time, histogram visual performance
● choice more human interface in Chinese and English
● plan task set port level
● socket for each situation management equipment and equipment
● independently or batch Settings current voltage more than warning threshold
● provide detailed log of users and equipment operation
● segment's personality can be within the local area network (LAN) equipment division scan management
● provided via the unification of the batch of grouping equipment power and restart the equipment function
● Supports meter clearing

Function		X30A LIS-0316 LIS-0416
Power Outlets	AC power plug	100–240V/10A 3 4
Power Outlets	DC power supply block	DC12/5A
The network interface		2x RJ-45(female head)
The LED light	The power supply	1 x (blue)
The LED light	1000M	2x (orange/green)
Input power switch		Light touch switch
I/P Rating		100–240V~; 50–60Hz; 10A
Load Capacity		60W
Environment	Operating Temperature	0–50℃
	Storage Temperature	-20–60℃
	Humidity	0–80% RH Non-condensing
Physical Properties	Housing	Metal
	Weight	0.65Kg 0.85kg 0.9kg 2.87kg
	Dimensions (L x W x H)	136x126x39mm

file version CN/EN Date download

PDU Centralized Management Platform X30A
