KM-401 4 Port Desktop USB Keyboard Mouse Synchronizer

KM-401 4 Port Desktop USB Keyboard Mouse Synchronizer

As a USB keyboard and mouse synchronizer, the 4-port USB keyboard and mouse synchronizer allows users to access a single or simultaneous access to 4 computers from a single USB keyboard and USB mouse control terminal. The synchronizer is simple and fast to install. If the cable is inserted into the correct port, there is no need for software setting and installation program Desktop small design, metal shell, easy to install and display, to provide users with a variety of USB devices to switch the operation, save desktop space, is the ideal choice for SOHO office and other multimedia applications

Components
View
KM-201

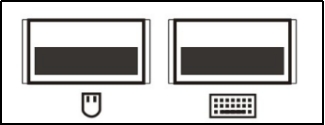

Control end USB-A port, connected to the keyboard and mouse

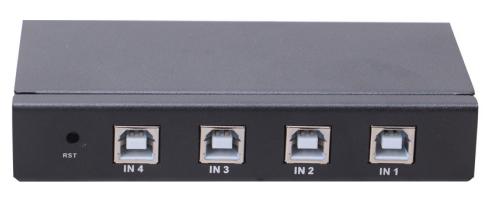

Controlled end USB-B interface, connected to the computer

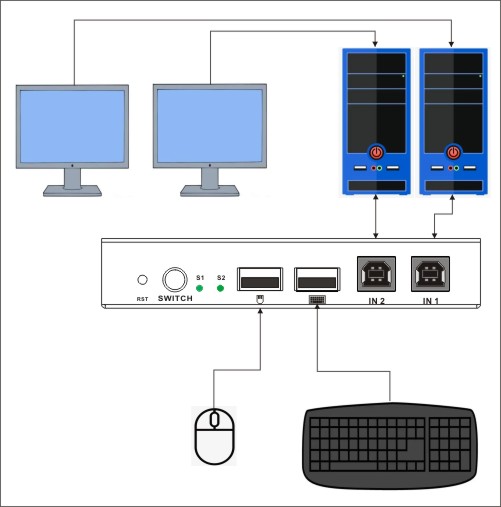

Connection View:

Function View

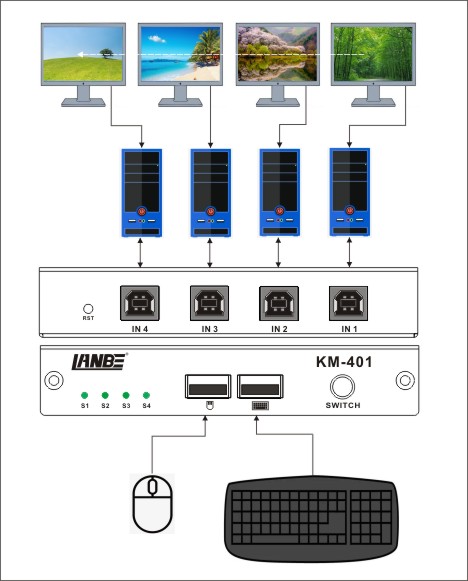

Left and right through the screen:

Default hotkey: [CTL] + [SHIFT] + [F12] to turn on/off the mouse left and right through the screen function, slide the mouse to the current desktop left and right border automatically through to the next port, and can operate the keyboard and mouse in this port normally.

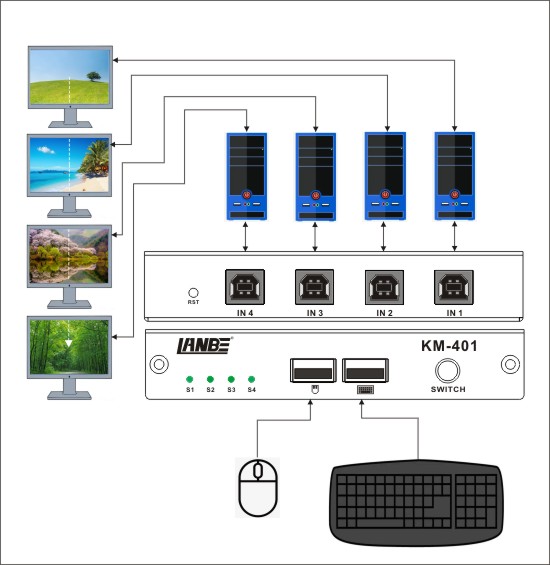

Up and down through the Screen:

Default hotkey: [CTL] + [SHIFT] + [F10] to turn on/off the mouse up and down through the screen function, slide the mouse to the current desktop up and down the border automatically through to the next port, and can operate the keyboard and mouse in this port normally.

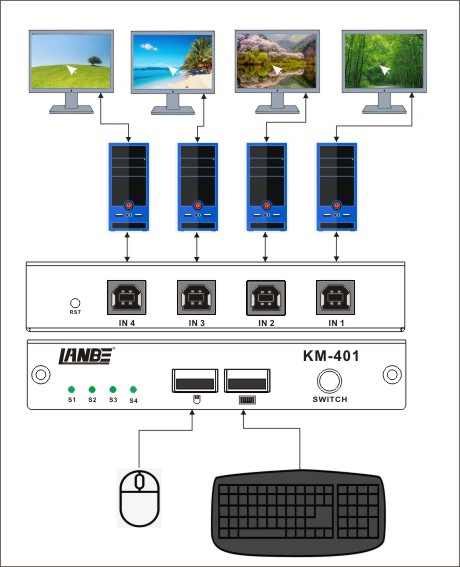

Keyboard and mouse synchronization:

Default hotkeys [CTL] + [SHIFT] + [0] to open/close the keypad synchronization function, the function opens all controlled ports keypad can be operated at the same time to use.

● 4-port USB2.0 button and mouse synchronizer
● A single USB control terminal controls 4 computers and USB peripherals
● Built-in USB2.0 hub, compatible with the USB2.0 protocol specification
● The keyboard hotkey switch function and the device panel key switch function are available
● Support for various operating systems on multiple platforms
● The BIOS level hardware connection, no need to install drivers and control software
● Offers a variety of hot keys selection and setting function, convenient for the user to set hotkeys depending on the situation

Functions			KM-401
Number of computer connections			4
Switch Mode			panel keys, hotkeys,
Connector	Control Port	Keyboard	1 x USB Type A female head
		Mouse	1 x USB Type A female head
	Computer port	Keyboard Mouse	4 x USB-B female head
Switch over switch	Connection Port Selection		1 x Light touch button
	Reset		1 x Light touch button
LED indicator	Computer Select Port		4 x green
Analog mode	Keyboard and mouse		USB
Default shortcut hotkey			CTL+SHIFT model
Operating environment	Operating temperature		0-50℃
	Storage Temperature		-20-60℃
	Humidity		0-80% RH, no coagulation
Body Attribute	Chassis		Metals
	Product Size		1256323mm
	Weight		0.24Kg

Left and right through the screen:
Default hotkey: [CTL] + [SHIFT] + [F12] to turn on/off the mouse left and right through the screen function, slide the mouse to the current desktop left and right border automatically through to the next port, and can operate the keyboard and mouse in this port normally.

Up and down through the Screen:
Default hotkey: [CTL] + [SHIFT] + [F10] to turn on/off the mouse up and down through the screen function, slide the mouse to the current desktop up and down the border automatically through to the next port, and can operate the keyboard and mouse in this port normally.

Keyboard and mouse synchronization:
Default hotkeys [CTL] + [SHIFT] + [0] to open/close the keypad synchronization function, the function opens all controlled ports keypad can be operated at the same time to use.

file version CN/EN Date download

KM-401 4 Port Desktop USB Keyboard Mouse Synchronizer
