LIS-0816 (8 Ways 16A Smart PDU)

contact

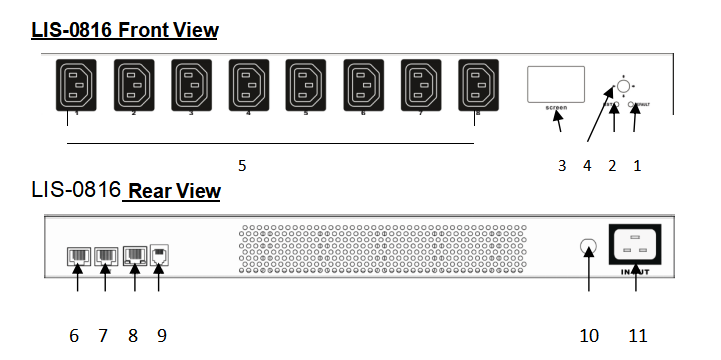

No.	Item	Description
1	Defaults Switch	This switch is recessed and must be pushed with a thin object, such as the end of a paper clip l You can press this button and hold it for more than 3 seconds to reset the PDU to factory default values l Release this switch and restart the device to take effect.
2	Reset Switch	Hold down the key to restart the PDU
3	LCD Displays	LCD used to display PDU status information
4	Interface selection button	Used to control the MENU function of LCD
5	Power output socket	Each power socket can connect to electrical devices with the current less than 10A. The total output power is less than 16A/32A. If the power output exceeds the maximum load, the PDU and electrical devices may be damaged and the circuit breaker protection function may be triggered
6	Cascade input port	Cascaded RJ45 input to other devices
7	Cascade output port	Cascaded output with other devices through RJ45
8	LAN Port	It can connect to 10M/100M Ethernet network. Control and access PDUs
9	T/H sensor ports	External temperature and humidity sensors can be connected through RJ11 ports
10	Overload protection switch	When the PDU is overloaded, the protector automatically disconnects the power supply to protect the electrical equipment.
11	16A power input socket	Please insert the power cable to the AC power supply here. This power input socket is equipped with a switch setting. When the power cable is connected and the power switch is turned on, the PDU can be put into working state.

● Remote users can monitor PDU and loop status on web pages
● Support safe shutdown function
● Each device has its own power supply and socket. The user interface can be accessed even when the overload state triggers the automatic power-off switch on this device
● Fire surge protection, reduce the risk of fire caused by surge.
● Remote power management via TCP/IP and built-in 10/100 Ethernet port
● Support network communication protocols: TCP/IP, UDP, HTTP, DHCP, 10BASE-T /100Base-TX, Ping
● Individual power sockets can be controlled locally and remotely (open, close, cycle switch)
● Power on sequence - The user can set the power on sequence and the delay time for each socket so that the device can be turned on in the appropriate sequence
● It can be easily set and operated through the browser interface
● Support for multiple browsers (IE, Mozilla, Firefox, Chrome, Safari, Opera, Netscape)
● It can measure the power status of the PDU loop of the whole power distributor
● Current and voltage critical setting
● Provides the socket naming function
● Support activity log
● Supports firmware upgrade
● Support multiple languages: English, simplified Chinese
● Configurable mail notification feature to keep your system notified of changes in status
● Flexible mounting design for easy mounting on structured wiring enclosures, walls or behind tables and televisions.
● Supports SNMP management
● The IP blacklist function effectively blocks malicious users
● Support the current, power, and power factor detection of each power supply separately output port
● Support separate port set threshold warning and power off Settings to protect the safety of electrical devices
● RTC supports timer operation in the absence of power supply
● Support multi-user Settings, and multi-user different management rights Settings
● Support PDU energy usage statistics, quickly understand the usage of electrical equipment through graphics
● PDU Exterior The PDU provides LCD Displays to visually display the operating status of ports and hosts XXXIX. Dynamic password verification in the login window enhances user login security verification
● You can add and query scheduled tasks to make work plans for PDU port sockets in advance
● Displays current and voltage alarms on the home page, and queries historical records of PDU anomalies
● Support zero meter clearing function
● Provides ports for the ambient T/H sensor
● Provides an RJ45 connector

Function		LIS-0816 LIS-0832
Power Outlets	Direct	8
Connectors	Power Inlet	IEC C19 Aviation connector
	Power Outlets	IEC C13
	LAN	1 x RJ-45(Female)
	Cascade	2 x RJ-45(Female)
LED lamp	State of the socket	LCD Displays
	Power	LCD Displays
	10/100M	1 (Orange/ Green)
Switches	Reset	1 x Semi-recessed button
Switches	Restore default Settings	1 x Semi-recessed button
I/P Rating		100–240V~; 50–60Hz;16A
Load Capacity		3840W
O/P Rating	Per Port	100–240V~; 50–60Hz; 10A
O/P Rating	Total	100–240V~; 50–60Hz; 16A/32A
Environment	Operating Temperature	0–50℃
	Storage Temperature	-20–60℃
	Humidity	0–80% RH Non-condensing
Physical Properties	Housing	Metal
	Weight	2.42kg
	Dimensions (L x W x H)	44215944.5mm
