AS-9104HA 4Port HDMI KVM Switch


● Single USB console control 4 HDMI interface computer and two additional USB device
● Supports USB TYPE A interface type keyboard and mouse device
● HDMI standard alone KVM resolution in Max: 4K @30HZ;
● Switch the computer through the front panel buttons, keyboard hotkeys and screen menu (OSD)
● Connect to the controlled device for BIOS-level access without worrying about the risk of viruses and Trojans
● The controlled computer does not need to install any software and drivers, and the controlled computer directly recognizes KVM.
● Support OSD to set user login mode and increase KVM login security requirements
● Support widescreen resolution
● Support DDC communication to adapt to different graphics devices
● Auto scan function monitors all computer operations
● Support for cross-platform operations - Windows, Linux, Mac*, and Sun*
The computer mouse and mouse connection port is controlled by Keep Online technology to simulate the mouse and keyboard. The device is safe and stable, and the switching is fast without delay.

Function

4 Ports

Computer Connection

4

Port Selection

OSD Menu, Front panel switches, Hot Key







Connector

Console Connector

Monitor

1 x HDMI Female

Keyboard

1 x USB Type A Female

Mouse

1 x USB Type A Female

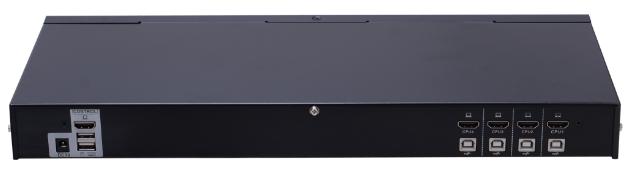

PC Connector

Monitor

4 x HDMI Female

Mouse/Keyboard

4 x USB TYPE B Female

Power Supply

1 x DC Jack

Toggle switch

Connection Port Selection

4 x keys

KVM Switch Reset



1 x Semi-embedded keys

LED Instruction

Selected

4 x Green

Online

4 x Red

Simulation Method

Keyboard & Mouse

USB

Max Resolution Video

4K@30HZ

Scan interval

3、5、1015、2030、40、60 secondsDefault 3 Seconds

Operating Environment

Operating temperature

0-50

Storage temperature

-20-60

Humidity

0-80%RH,No Condensation

Physical Properties

Housing

metal

Dimensions(L x W x H )

432 x 155 x 44 mm

Weightkgs

1.8KG
