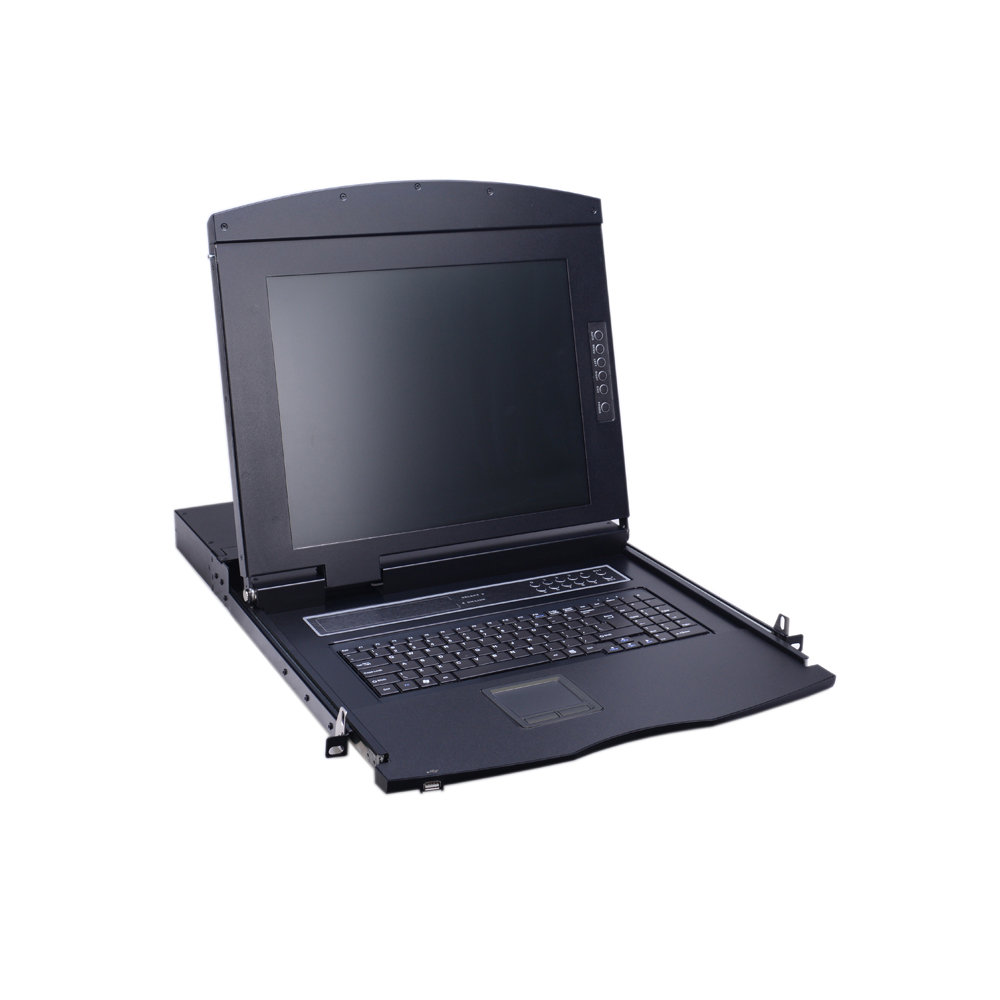

AS-7116HLS (Single Rail, 17” HDMI LCD KVM Switch 16 Ports)


LCD Monitor Features:
● Front LCD Console(keyboard,mouse,monitor17”)+ 16 port HDMI KVM Module design (1ports);   It’s very flexible and convenient for combination;
● Keyboard is with demountable design, with 9 different languages: American, English, German, French, Spanish, Swiss, Turkish, Russian, Italian;
● Extra prepositive USB mouse interface;
● Total length: 611m; fit for 800-1200mm cabinet;
● Support 1080p resolution;

HDMI KVM Module Features:
● Single USB console control 16HDMI interface computer and two additional USB device
● Supports USB TYPE A interface type keyboard and mouse device
● HDMI LCD Console resolution in Optimum:1920x1080@60Hz;
● KVM module resolution in Max: 4K@30HZ(3840x2610@30HZ;
● Switch the computer through the front panel buttons, keyboard hotkeys and screen menu (OSD)
● Connect to the controlled device for BIOS-level access without worrying about the risk of viruses and Trojans
● The controlled computer does not need to install any software and drivers, and the controlled computer directly recognizes KVM.
● Upgrade remote network control mode by extending IP BOX
● Support OSD to set user login mode and increase KVM login security requirements
● Support widescreen resolution
● Support DDC communication to adapt to different graphics devices
● Auto scan function monitors all computer operations
● Support for cross-platform operations - Windows, Linux, Mac*, and Sun*

17” High-Definition Monitor Specification:

Type

17.3” Wide-Screen LCD Console-A7100HLS(F)

LCD Monitor

Ratio

17.3” Screen, 16:9

Video

Wide AHVA TFT-LCD

Visible Square

381.888(H) x 214.812(V)

Resolution

1920*1080 @60HZ

Support Color

16.7MRGB 6-bit data+ HiFCR data

Contrast

600 : 1 (Typ)

Back light

LED

Pixel Pitch

0.1989(per one triad) x 0.1989

LED MTBF

100,000 hours

Input power

12V

Keyboard (demountable design)

Keyboard

100Keys, detachable (9 different languages for choose)

Compatible IBM/AT

Microsoft Windows9, Me/NT/2000/XP, WIN7, Server2003, WIN8, WIN10

Port

Standard PS/2; USB

Using life

>1,000,000 Times

Mouse

Type

Touch Screen

Port

Standard PS/2

X/Y Resolution

>1000dots/inch, (40x40/mm)

Using life

>1,000,000 Times

Installation Dimension

407*445*45mm

Weight

8.5kg


KVM Module Specification:

Type

16Port

Model No.(Completed device)

AS7100HLS(F)+HLS-H16   (AS-7116HLS)

Computer Connection

16

Port Selection

OSD Menu, Front panel switches, Hot Key







Connector

Console Connector

Monitor

1 x HDMI Female

Keyboard

1 x USB Type A Female

Mouse

1 x USB Type A Female

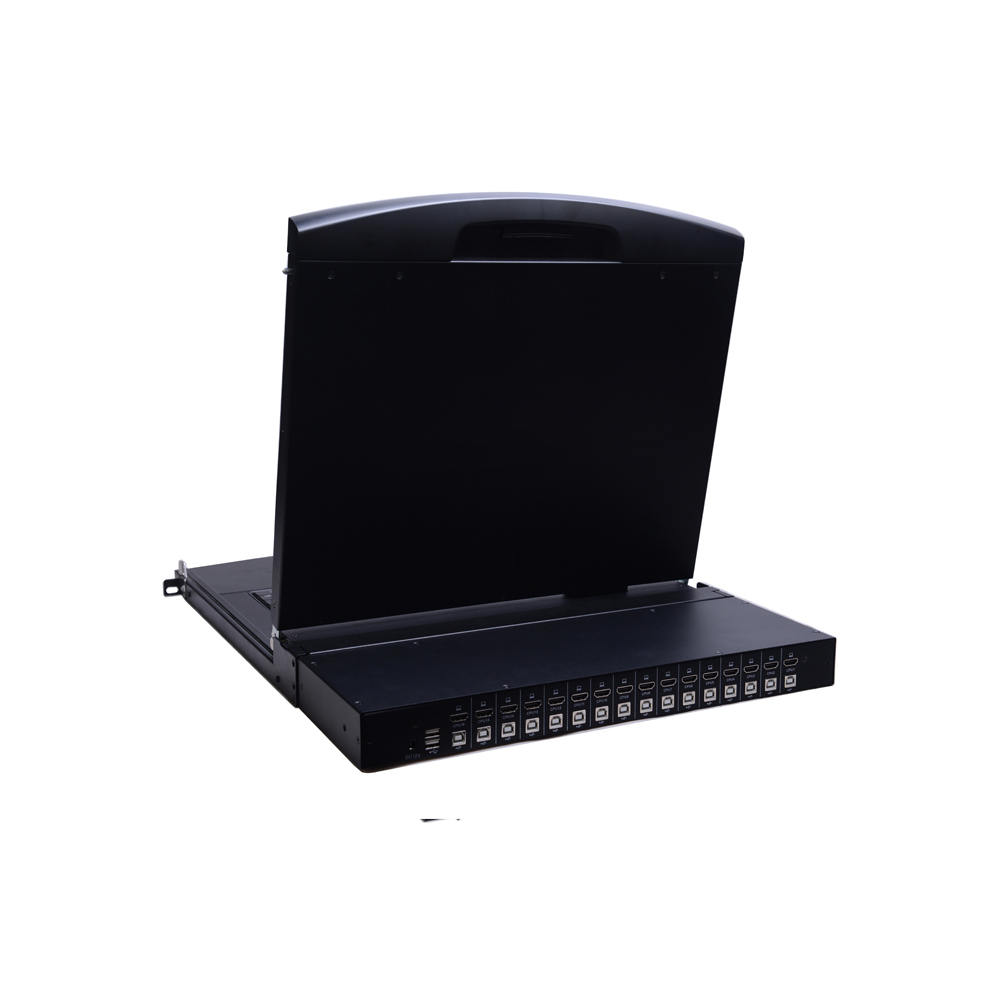

PC Connector

Monitor

16 x HDMI Female

Mouse/Keyboard

16 x USB TYPE B Female

Power

Power Supply

1 x DC Jack

Key switch

Connection Port Selection

16 x keys

KVM Switch Reset

1 x Semi-embedded keys

LED Instruction

Selected

16 x Green

Online

16 x Red

Simulation Method

Keyboard & Mouse

USB

Max Resolution Video

4K@30HZ (3840*2610@30HZ)

Scan interval

3、5、10、15、20、30、40、60 secondsDefault 3 Seconds



Operating Environment

Operating temperature

0-50

Storage temperature

-20-60

Humidity

0-80%RH,No Condensation



Physical Properties

Housing

metal

Dimensions(L x W x H )

432 x 155 x 44 mm

Weightkgs

3.88KG
