AS-9104HLD (Dual-Rail, 19” HDMI LCD KVM Switch in 4 Ports)


Key Features:
● 1U height, suitable for 19’’ standard cabinet installation and metal housing.
● With dual-rail structure, LCD screen and keyboard can be pulled out & in separately.
● Keyboard is module design, with 9 different languages: American, English, German, French, Spanish, Swiss, Turkish, Russian, Italian;
● One control platform can control 4 computer by direct connection;
● Support multiple operating systems;
● Monitor optimal resolution: 1280*1024; KVM resolution:4K@30Hz;
● Provide cable: HDMI+USB 8pcs in 1.8m
● Support installation: 800-1200mm depth rack.

HDMI KVM Module Features:
● Single USB console control 4HDMI interface computer and two additional USB device
● Supports USB TYPE A interface type keyboard and mouse device
● HDMI LCD Console resolution in Optimum:1920x1080@60Hz; HDMI standard alone KVM resolution in Max: 4K@30HZ(3840x2610@30HZ;
● Switch the computer through the front panel buttons, keyboard hotkeys and screen menu (OSD)
● Connect to the controlled device for BIOS-level access without worrying about the risk of viruses and Trojans
● The controlled computer does not need to install any software and drivers, and the controlled computer directly recognizes KVM.
● Upgrade remote network control mode by extending IP board
● Support OSD to set user login mode and increase KVM login security requirements
● Support widescreen resolution
● Support DDC communication to adapt to different graphics devices
● Auto scan function monitors all computer operations
● Support for cross-platform operations - Windows, Linux, Mac*, and Sun*

19” LCD Console Specification

Type

19” LCD Console

LCD Monitor

Ratio

19” Screen, 4:3

Video

Wide AHVA TFT-LCD

Visible Square

376.32(H) x 301.06(V)

Resolution

1280*1024 @60HZ(Optimum)/1920*1200@60HZ(Max)

Support Color

16.7M, True 8 bit

Contrast

1000 : 1 (Typ)

Back light

LED

Pixel Pitch

294*294um

LED MTBF

100,000 hours

Input power

12V

Keyboard (demountable design)

Keyboard

100Keys, detachable (9 different languages for choose)

Compatible IBM/AT

Microsoft Windows9, Me/NT/2000/XP, WIN7, Server2003, WIN8, WIN10

Port

Standard PS/2; USB

Using life

>1,000,000 Times

Mouse

Type

Touch Screen

Port

Standard PS/2

X/Y Resolution

>1000dots/inch, (40x40/mm)

Using life

>1,000,000 Times

Dimension

645*442.4*44.5mm

Weight

11.09kg


HDMI KVM Module Specification:

Type

4 Port

Model No.(Completed device)

AS-9104HLD

Computer Connection

4

Port Selection

OSD Menu, Front panel switches, Hot Key



Console Connector

Monitor

1 x HDMI Female



Keyboard

1 x USB Type A Female



Mouse

1 x USB Type A Female

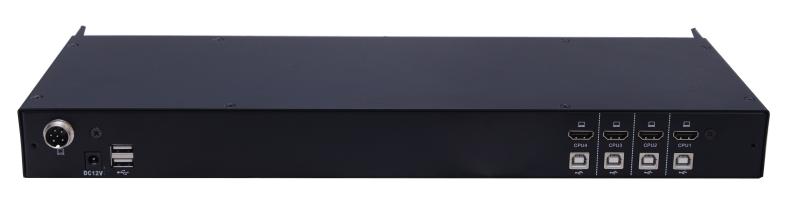

Connector

PC Connector

Monitor

4x HDMI Female



Mouse/Keyboard

4x USB TYPE B Female



Power Supply

1 x DC Jack

Key  switch

Connection Port Selection

4x keys

KVM Switch Reset

1 x Semi-embedded keys

LED Instruction

Selected

4x Green

Online

4x Red

Simulation Method

Keyboard & Mouse

USB

Max Resolution Video

4K@30HZ (3840*2610@30HZ)

Scan interval

3510、15、2030、40、60 secondsDefault 3 Seconds

Operating Environment

Operating temperature

0-50℃

Storage temperature

-20-60℃

Humidity

0-80%RHNo Condensation

Physical Properties

Housing

metal

Dimensions(L x W x H )

432 x 155 x 44 mm

Weightkgs

1.8KG
