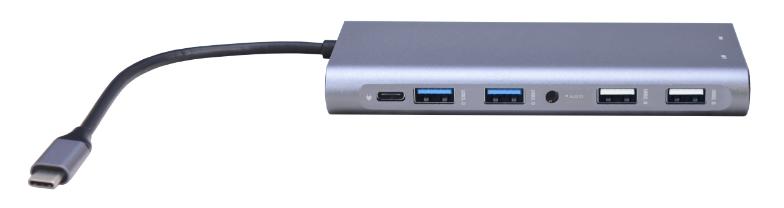

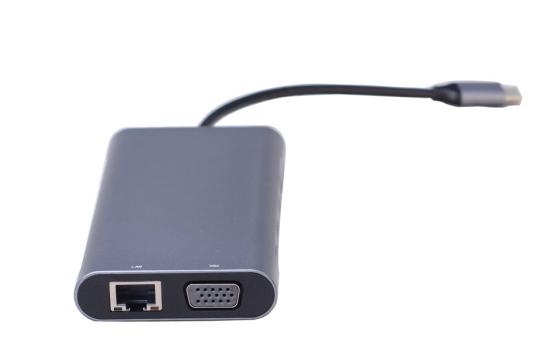

KZ-1101 USB-C 11-in-1 Monitor Docking


USB 3.2 Type-C Male to HDMI and VGA Females, Two USB 3.2 Gen 1, SuperSpeed (5 Gbps) Type-A Ports, USB 2.0 Type-A Port, USB-C PD Port, Gigabit RJ45 Port, SD/MicroSD Card Reader and 3.5 mm Audio Port; With four USB ports for mice, keyboards and flash drives, a 3.5 mm stereo port for a headset and two slots for SD/microSD cards, this docking station easily satisfies all your connectivity demands. Plus, its Gigabit RJ45 port provides the wired network connection that’s missing in most modern Ultrabooks and Macbooks.

● Multi-function docking station that connects a USB-C device to HDMI, and VGA displays simultaneously, two USB 3.2 Gen 1 Type-A ports, two USB 2.0 Type-A port, a 10/100/1000 Mbps Ethernet port, a 3.5 mm stereo port, a USB-C power port and an SD Card Reader
● Up to 4K@30Hz (UHD) resolution on HDMI connection
● Up to 1080p@60Hz (Full HD) resolution on VGA connection
● One Gigabit Ethernet (10/100/1000) port for faster downloads, media streaming and gamin
● Two USB 3.2 Gen 1, SuperSpeed (5 Gbps) and two USB 2.0 type-A ports HighSpeed (480Mbps)to connect mice, keyboards, flash drives and more or to charge and sync mobile devices
● Micro SD and SD card slots with read/write function; supports automatic card detection and data transfer speeds up to 832 Mbps
● USB-C Power Delivery (PD) port (requires minimum 15-W-output PD wall charger) for a maximum of 100 W (20 V at 5 A) to connected devices; Supports USB Power Delivery (PD) function up to 100 W;
● 3.5 mm jack for high-quality stereo sound; supports both a mic (audio input) and headphone (audio output)

Product ModelKZ-1101

Port

USB2.0

2 x USB Type A Female (480Mbps)

USB3.0

2 x USB Type A Female (5 Gbps)

PD

1 x  Type C Female (100w)

AUDIO

1 x 3.5MM Female

SD

1 x SD card (832Mbps)

Micro SD

1 x Micro SD card (832Mbps)

HDMI

1 x HDMI-19P Female

VGA

1 x DB15 Female

Network

1 x 1000M RJ45 Female

Type-c cable

1 x USB - C Male

Maximum resolution

HDMI4K @ 30Hz,VGA1920 x1080@60Hz



Operating Environment

Operation temperature



0-50℃

Storage temperature



-10-70℃

Humidity



0-80%RH,Noncondensing

Physical

Housing

Aluminum

Dimensions

133 x 58 x  mm (5.23 x 2.28 x  in.)

Weight

0.8kg
