AS-21HA (HDMI KVM Switch 2 ports）


As a KVM switch 2 ports with HDMI interface allows users to access from a single USB keyboard, mouse and  HDMI  the display console accesses  2 computers. Desktop compact design, metal casing, easy to install and place; provide users with a variety of fast switching options for audio, video, USB devices, saving desktop space, is a multimedia application such as SOHO office Ideal.
● 2 Port HDMI USB2.0 KVM Switch with audio;
● Single USB console control 2 HDMI interface computer and two additional USB device;
● 2 ports USB hub 2.0 built in; fully compliant USB 2.0 specification;
● HDMI video resolution in Max: 4K@30fp4K @30HZ (3840*2610 @30HZ);
● Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys;
● HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
● Dolby True HD and DTS HD Master Audio support
● Multiplatform support;
● BIOS hardware connection, no need drive program and control software;
● USB extension port in front of device, which is convenience for keyboard, mouse, flash and printer peripheral devices connection;
● Provide multi-types of hotkeys setting and choosing function, convenience for users to set hotkey freely;
● Auto-scan functions;

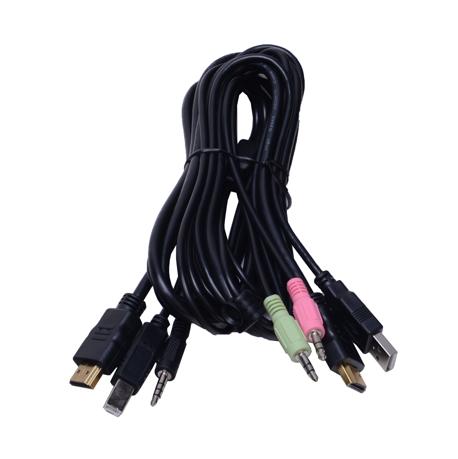

● Attached HDMI+USB cable 2 pcs

Function

AS-21HA

Computer Connection

2

Port Selection

OSD Menu, Front panel switches, Hot Key







Connector





Console Connector

Monitor

1 x HDMA Type A Female Black

Keyboard

1 x USB Type A Female

Mouse

1 x USB Type A Female

Speaker

1x Mini Stereo jack Female Green

Microphone

1x Mini Stereo jack Female Pink

PC Connector

Monitor

2 x HDMI Type A Female black

Mouse/Keyboard

2 x USB Type B Female white

Speaker&Microphone

2x Mini Stereo jack Female Black

Power Supply

1 x DC Jack

Connection Port Selection

KVM Switch Reset



2*KVM Operation Panel Function Keys



LED Instruction

Online

2 x Red

Selected

2 x Green

Simulation Method

Keyboard/Mouse

USB

Max Resolution Video

4K @30HZ (3840*2610 @30HZ)

Switch Hotkeys

CTL+CTL

Operating Environment

Operating temperature

0-50℃

Storage temperature

-20-60℃

Humidity

0~80%RH No Condensation

Physical Properties

Housing

metal

Dimensions(L x W x H )

132*92*44mm

Weight（kgs）

0.6
